Buy Coaxial Cables

Buy Cheap CommScope F6SSVV $.50 per ft. 75 Ohm RG6 Quad-Shield Coaxial Cable Drop Cable CATV ETL

Click to see Best Price $$

* BONDED LAMINATED ALUMINUM TAPE
* 60% BRAID
* LAMINATED ALUMINUM TAPE
* 40% BRAID
* FLAME RETARDANT PVC JACKET
* MEETS NEC ARTICLE 820V RATING (ETL LISTED)
* Product Code: 7461004
* 9900963 (ETL) us CATV

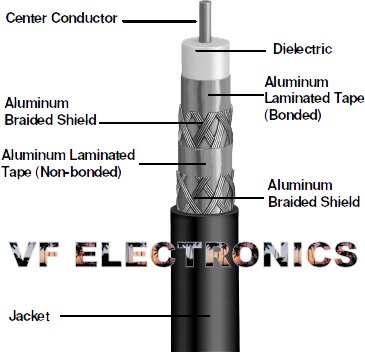

CENTER CONDUCTOR:
* 18 AWG COPPER-CLAD STEEL
* NOMINAL DIAMETER: 0.040 (1.02 mm)

DIELECTRIC:
* GAS EXPANDED POLYETHYLENE
* NOMINAL DIAMETER OVER DIELECTRIC: 0.180 (4.57 mm)

SHIELD:
* 1ST SHIELD: ALUMINUM LAMINATED TAPE BONDED TO THE DIELECTRIC
* NOMINAL DIAMETER OVER TAPE: 0.187 (4.75 mm)
* 2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE
* 60% COVERAGE
* 3RD SHIELD: LAMINATED ALUMINUM TAPE
* 4TH SHIELD: 34 AWG ALUMINUM BRAID WIRE
* 40% COVERAGE

JACKET:
* FLAME RETARDANT PVC
* NOMINAL DIAMETER OVER JACKET: 0.297 (7.54 mm)
* NOMINAL JACKET THICKNESS: 0.033 (0.84 mm)

ELECTRICAL PROPERTIES:
* IMPEDANCE: 75.0 +/- 3.0 Ohms
* VELOCITY OF PROPAGATION: 85.0% NOMINAL
* ATTENUATION @ 68°F (20°C):
@ Frequency MHz // dB/100 ft. (MAX.) // DB/100 meters (MAX.)

5 MHz 0.58 dB 1.90 dB
55 MHz 1.60 dB 5.25 dB
83 MHz 1.95 dB 6.40 dB
187 MHz 2.85 dB 9.35 dB
211 MHz 3.05 dB 10.00 dB
250 MHz 3.30 dB 10.82 dB
300 MHz 3.55 dB 11.64 dB
350 MHz 3.85 dB 12.63 dB
400 MHz 4.15 dB 13.61 dB
450 MHz 4.40 dB 14.43 dB
500 MHz 4.66 dB 15.29 dB
550 MHz 4.90 dB 16.08 dB
600 MHz 5.10 dB 16.73 dB
750 MHz 5.65 dB 18.54 dB
865 MHz 6.10 dB 20.01 dB
1000 MHz 6.55 dB 21.49 dB…….
Read more

Technical Details

– BONDED LAMINATED ALUMINUM TAPE
– 60% BRAID
– LAMINATED ALUMINUM TAPE
– 40% BRAID
– FLAME RETARDANT PVC JACKET
See more technical details Read the rest of this entry »

Buy Cheap Bleil – Antenna cable – 25 ft – coaxial

Click to see Best Price $$

Marketing description is not available……..
Read more

Technical Details

See more technical details Read the rest of this entry »

Buy Cheap Steren Dual F Grounding Blocks – Dual, Single Ground Screw

Click to see Best Price $$

5-900 MHz Dual, dual ground screw…….
Read more

Technical Details

See more technical details Read the rest of this entry »

Buy Cheap Philips SDW5206M/17 RG6 Compression F Connectors Quad Shield Cable (25 feet)

Click to see Best Price $$

Enjoy premium picture quality with virtually no signal loss. Connects satellite, antenna and digital cable sources to components……..
Read more

Technical Details

– 3X faster than RG6 coax
– 24 carat gold plated connector
– 18 AWG copper coated conductor
– Heavy duty pliable jacket and aluminum foil and braided shield
– Dielectric insulation with corrosion resistant connectors
See more technical details Read the rest of this entry »

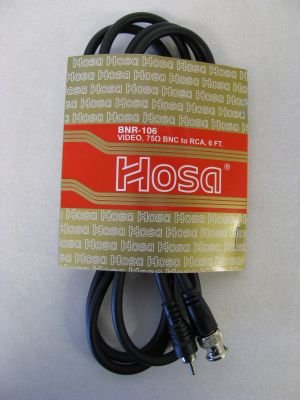

Buy Cheap Hosa 6 Ft RG-59/U 75 Ohm Coaxial BNC to RCA Video Cable

Click to see Best Price $$

• Conductor: 22awg CCS
• Shield: OFC Braid
• Use for low-power, professional-to-consumer video applications.
• True 75-ohm (RG-59/U) coax ensures accurate video signal and data transfer.
• Negates the need for a cumbersome adapter.

…….
Read more

Technical Details

See more technical details Read the rest of this entry »

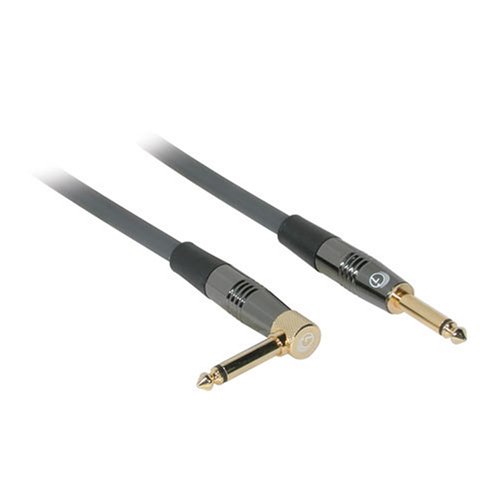

Buy Cheap Cables to Go 40906 SonicWave Pro-Audio Cable

Click to see Best Price $$

Premium 1/4-Inch instrument cable for systems that demand absolute signal integrity…….
Read more

Technical Details

– Connect line or mic level outputs from mixing consoles to recorders and amplifiers with unbalanced inputs. The SonicWave Pro-Audio 1/4-Inch instrument cable embodies the very pinnacle of contemporary cable design and performance.
See more technical details Read the rest of this entry »

Buy Cheap 3.0GHZ RG-6 Coaxial Cable (500′)

Click to see Best Price $$

SCP is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With many years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions……..
Read more

Technical Details

– Sold Individually
See more technical details Read the rest of this entry »

Buy Cheap TFC / Amphenol T6Q-FEC 75 Ohm RG6 Quad-Shield Underground Flooded Coaxial Cable TFC-T10 Drop Cable CATV ETL Orange T6QFEC T6Q FEC TFCT10 TFC T10

Click to see Best Price $$

* SEALED APA TAPE
* 60% ALUMINUM BRAID
* UNSEALED APA TAPE
* 40% ALUMINUM BRAID
* FLAME RETARDANT PVC JACKET
* MEETS NEC ARTICLE 820V RATING (ETL LISTED)
* Color: Orange
* Product Code: 02288 / 2288
* TFC-T10 (ETL) us CATV

CENTER CONDUCTOR:
* 18 AWG COPPER-CLAD STEEL
* NOMINAL DIAMETER: 0.040 (1.02 mm)

DIELECTRIC:
* GAS EXPANDED POLYETHYLENE
* NOMINAL DIAMETER OVER DIELECTRIC: 0.180 (4.57 mm)

SHIELD:
* 1ST SHIELD: ALUMINUM LAMINATED TAPE BONDED TO THE DIELECTRIC
* NOMINAL DIAMETER OVER TAPE: 0.187 (4.75 mm)
* 2nd SHIELD: 0.212 in. / (5.38 mm) ALUMINUM BRAID WIRE
* 60% COVERAGE
* 3RD SHIELD: LAMINATED ALUMINUM TAPE
* 4TH SHIELD: 0.241 in. / (6.12 mm) ALUMINUM BRAID WIRE
* 40% COVERAGE

JACKET:
* FLAME RETARDANT PVC
* NOMINAL DIAMETER OVER JACKET: 0.297 (7.54 mm)
* NOMINAL JACKET THICKNESS: 0.033 (0.84 mm)

ELECTRICAL PROPERTIES:
* IMPEDANCE: 75.0 +/- 3.0 Ohms
* VELOCITY OF PROPAGATION: 85.0% NOMINAL
* NOMINAL CAPACITANCE: 16.2 pF/foot / (53.2 pF/m)
* ATTENUATION @ 68°F (20°C):

@ Frequency MHz // dB/100 ft. (MAX.) // DB/100 meters (MAX.)
5 MHz 0.57 dB 1.87 dB
55 MHz 1.50 dB 4.94 dB
211 MHz 2.87 dB 9.43 dB
250 MHz 3.12 dB 10.22 dB
270 MHz 3.24 dB 10.63 dB
300 MHz 3.43 dB 11.25 dB
330 MHz 3.61 dB 11.84 dB
350 MHz 3.72 dB 12.20 dB
400 MHz 4.00 dB 13.12 dB
450 MHz 4.28 dB 14.04 dB
500 MHz 4.51 dB 14.80 dB
550 MHz 4.76 dB 15.62 dB
600 MHz 4.98 dB 16.34 dB
750 MHz 5.62 dB 18.44 dB
870 MHz 6.09 dB 19.99 dB
1000 MHz 6.54 dB 21.46 dB…….
Read more

Technical Details

– SEALED APA TAPE
– 60% ALUMINUM BRAID
– UNSEALED APA TAPE
– 40% ALUMINUM BRAID
– FLAME RETARDANT PVC JACKET
See more technical details Read the rest of this entry »

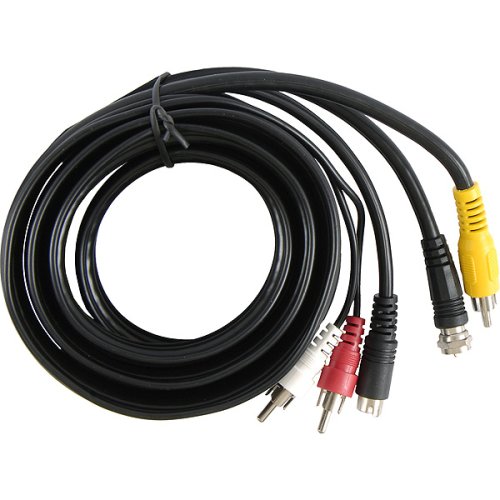

Buy Cheap GE 73450 Video Connects All Cable Kit

Click to see Best Price $$

Video Connects All Kit takes the guess work out of hooking up home electronics……..
Read more

Technical Details

– Complete connection for any two audio video devices
– Includes 6 foot S-video cable, 6 foot audio video cable and 6 foot coax cable
– Nickel-plated connectors
See more technical details Read the rest of this entry »

Buy Cheap SMC SMCANT-CAB25F 25′ LMR 400 Antenna Cable

Click to see Best Price $$

As a recognized industry leader for the past 30 years, SMC Networks has set the standard for high-quality, standards-based connectivity and Internet access solutions. The company leverages its global manufacturing resources and strategic relationships with technology innovators to bring to market a growing range of affordable, leading-edge networking and connectivity solutions……..
Read more

Technical Details

– Can be used with any one of our High Gain Antennas
– Durable for Indoor/Outdoor use
See more technical details Read the rest of this entry »
